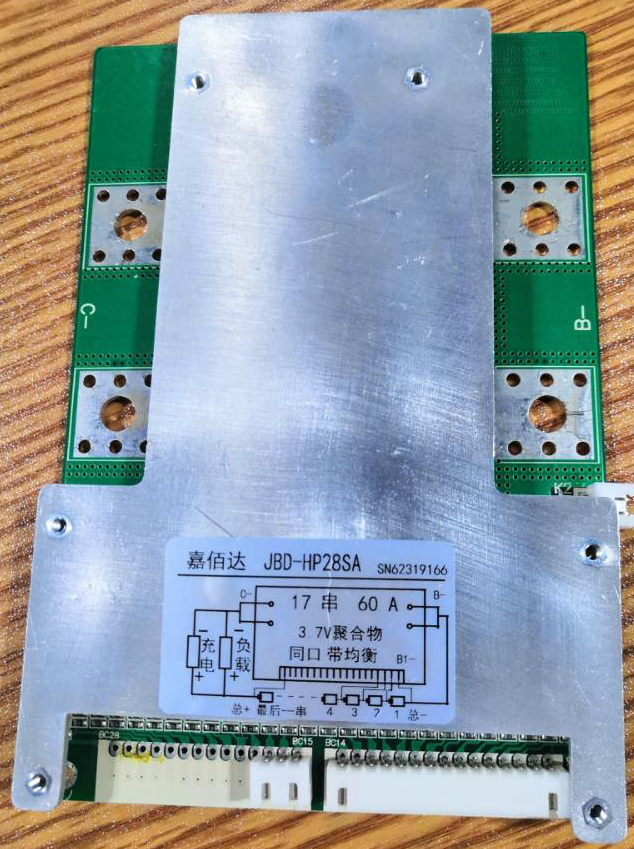

Lithium Ion Smart BMS
Products Menu
Cylindrical Batteries Charging And Discharging Machine
Single Channels Battery Charge and Discharge Machine
8 Channels Battery Charge and Discharge Machine
16 Channels Battery Charge and Discharge Machine
80 Channels Battery Charge and Discharge Machine
256 Channels Battery Charge and Discharge Machine
512 Channels Battery Charge and Discharge Machine
Battery Welding Machine
Battery Welding Machine
Manual Tap Welding Machine
Manual Battery Spot Welding Machine
Manual Battery Spot Welding Machine with Table
Electric Semi-automatic Spot-Welding Machine
Manual Horizontal Battery Spot Welding Machine
Automatic Horizontal Battery Spot Welding Machine
Automatic Battery Spot Welding Mini-Machine
Automatic Horizontal Battery Spot Welding Machine
Automatic Double-Sided Vertical Battery Spot Welding Machine
Battery Laser Welding Machine
Battery Laser Welding Machine
Cylindrical Battery Laser Welding Machine 70W/110W/200W
Prismatic Battery Laser Welding Machine (1500W)
Battery Al Wire Bonding Machine
Battery Al Wire Bonding Machine
Automatic Wire Wedge Bonder for Battery Pack
Nickel Strip Cutter
Nickel Strip Cutter
Automatic Nickel Strip Cutter Machine
Cell Capacity Tester
Cell Capacity Tester
Single Cell Capacity Tester
Lithium Ion/Phosphate Battery Pack Tester
Lithium Ion/Phosphate Battery Pack Tester
Battery Pack Charger
Battery Pack Charger
Cell IR & Voltage Tester
Cell IR & Voltage Tester
Single Cell IR & Voltage Tester
Lithium Cell Voltage and Internal Resistance Tester
Battery Pack Tester
Code Printing Machine
Code Printing Machine
Handheld or Online with Conveyor Inkjet Code Printing Machine
CCD Visual Inspection Machine
BMS Tester
BMS Tester
1-24 Series Protective Plate BMS Tester for Lithium Battery Pack
1-32 Series Protective Plate BMS Tester with table & PC for Lithium Battery Pack
Battery Insulation Paper Padding and Sorting Machine
Battery Insulation Paper Padding and Sorting Machine
Cylindrical Battery Paper Sticker Padding Sticking Machine
Integrated & Comprehensive Tester Battery Inspection
Integrated & Comprehensive Tester Battery Inspection
PVC film Heat Shrink Packing Wrapping Machine
PVC film Heat Shrink Packing Wrapping Machine
Automatic PVC film Heat Shrink Packing Wrapping Machine
lithium battery charging and discharging cycle test machine
lithium battery charging and discharging cycle test machine
Battery Pack 100V 20A Charging & Discharging Aging Tester
BMS
BMS
Lithium ion
Hardwere BMS
Softwere BMS (Smart BMS)
Lithium phosphate
Hardwere BMS
Softwere BMS (Smart BMS)
Cells
Cells
Lithium cells
Lithium Ion 18650 Cell
2000mAh
2500mAh
2600mAh
3000mAh
Lithium Phosphate Cells
50Ah
80Ah
86Ah
100Ah
120Ah
Battery Raw Materials
Battery Raw Materials
PRODUCT INTRODUCTION:
BMS is a Smart CAN and Bluetooth based management system used in large current applications. Supporting passive balancing as well as Active (using custom code) which complies with overall battery protection features like overcharge, over discharge, over current and over temperature protection etc.
The BMS communicates with the PC or Charger and Controller via CAN and supports CAN 2.0 it also supports mobile connection via a dedicated mobile app, supporting Android OS. The app is used to monitor live battery working status and can be used to modify the working parameters of the BMS and also acts as an emergency switch to switch off charging as well as discharging. Having a Robust design and being small and extremely light this BMS can be used in Lithium Battery.
The default is the li-ion parameters however when you connect your phone to the BMS via Bluetooth, you can click and set up lifePo4 / LTO parameters.
TECHNICAL DETAILS:
- Single cell voltage detection range 1.5V-4.6V.
- High precision detection cell voltage error is less than 5MA
- Charging current 50A
- Discharge current: 120-160A
- Continuous 320 Peak (Depending on which BMS model you buy)
- Balance current :200MA.
- Controlled balance mode, when you start charging, the voltage difference can be detected by the voltage difference greater than the set value.
- High-precision coulomb counter function temperature control detection Hall speed measurement
- Bluetooth connection: support for android with Bluetooth 4.0
- Support cells: Support Li-ion, Lipo, 18650, Lifepo4, LTO and so on
- Voltage accuracy: Single cell voltage detection range (1.5-4.6V), accuracy error within 3 mV
- Overcharge protection
- Over discharge protection
- Short circuit protection: Up to 320A
- Overcurrent protection: maximum 300A
- Current detection: within the current range of the BMS
- Temperature control protection: The protection board has built-in balanced temperature control, power temperature, and can be connected with 4 temperature sensors to prevent high temperature danger
TECHNICAL PARAMETERS:
13 SERIES, 40A/60A/100A
2) 17 SERIES, 40A/60A/100A
3) 20 SERIES, 40A/60A/100A
